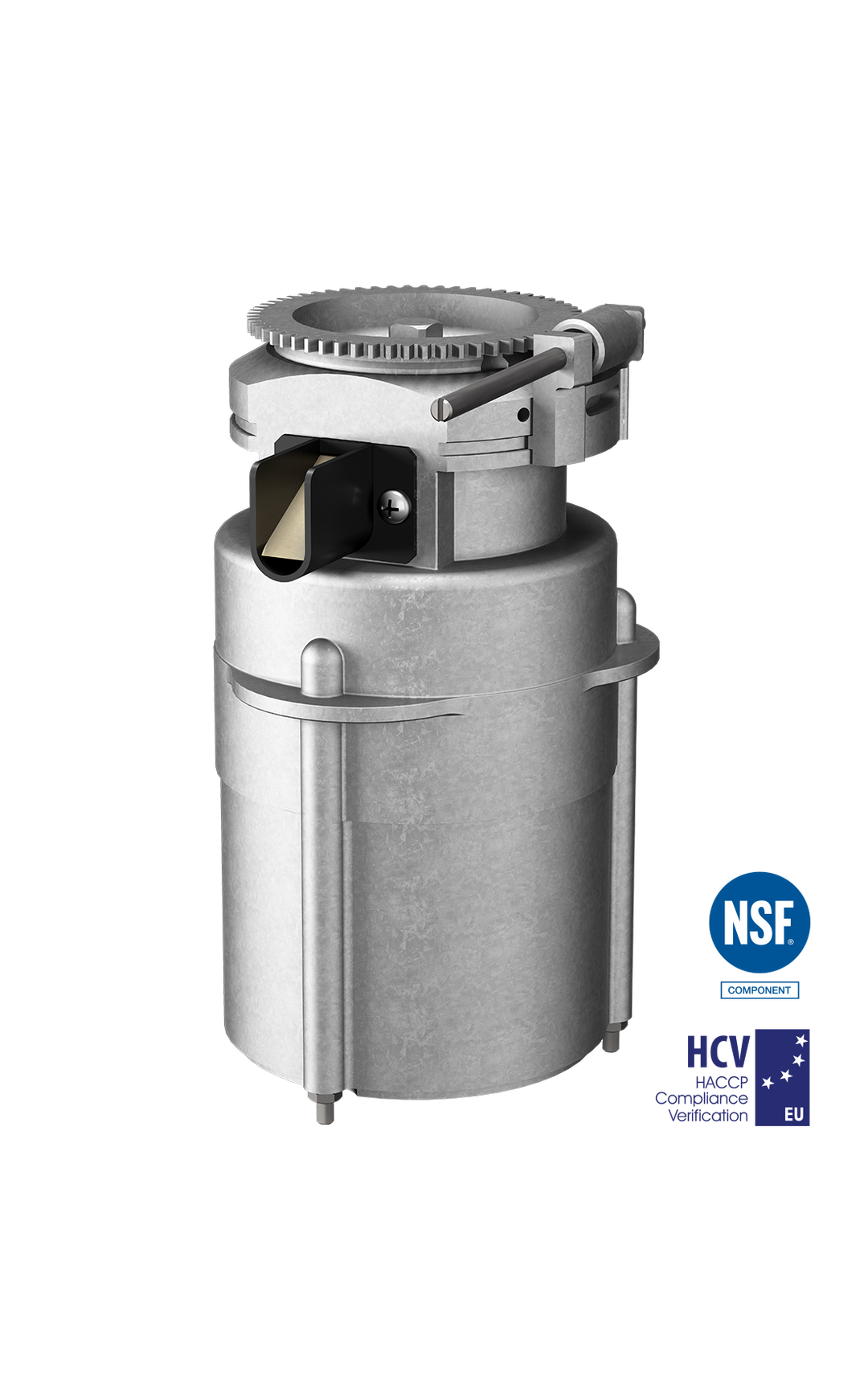

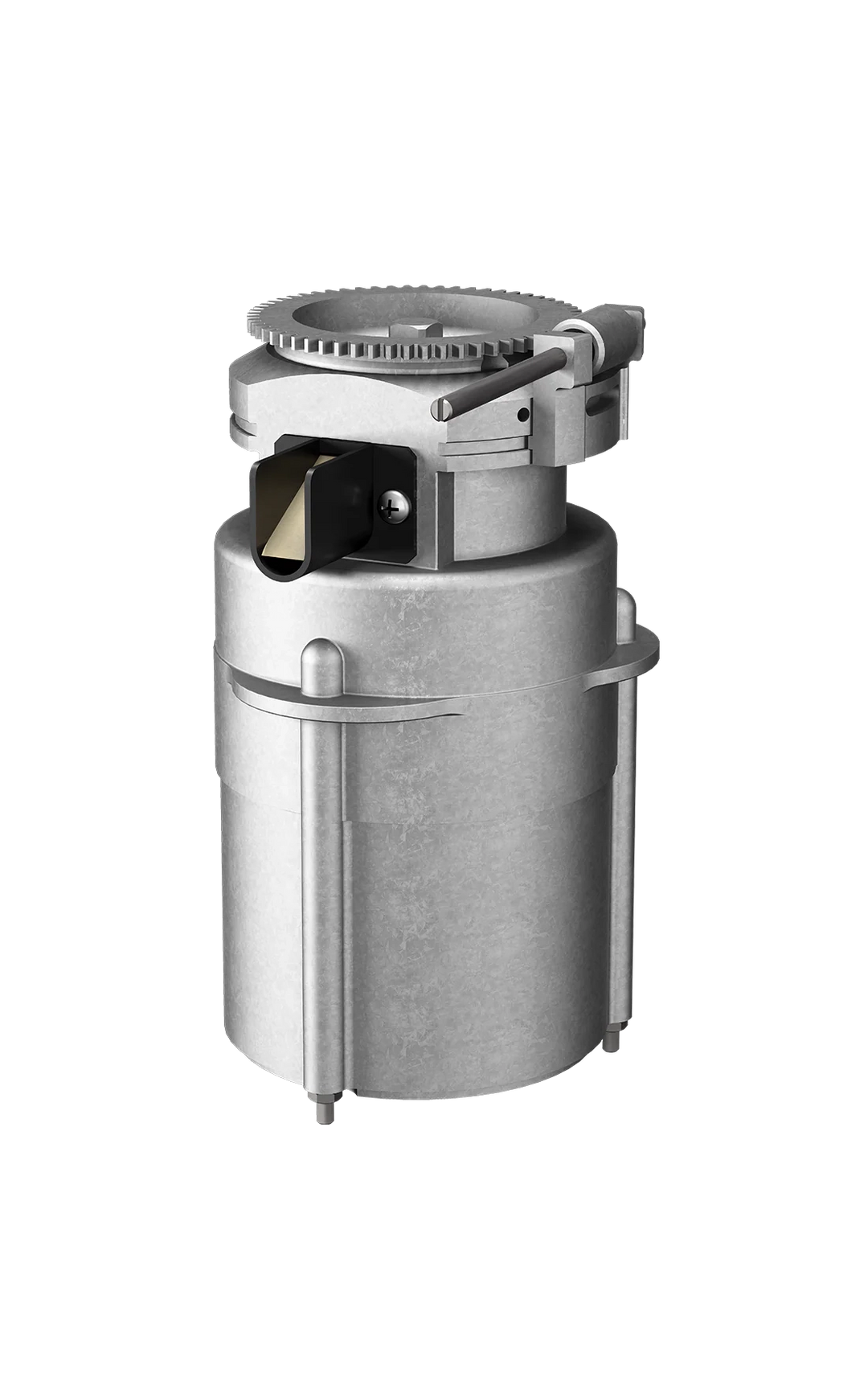

Built-in grinder for the perfect espresso grind.

• Consistent grinding with high repeating accuracy
• Compact size despite AC-motor
• Stepless and/or electronic grind adjustment upon request
• NSF certified



Click on the logos above to see the full list of components that have a valid certification.

Certifications are valid for the listed products, only.

Voltage:

• 200 - 240 VAC
• 110 - 120 VAC

Amperage: 1.7 A

Coarseness range: 250 - 800 µm

Average grinding performance: 3 g/s

Ideal daily capacity: 200 shots

Potential rush hour capacity: 60 shots/hour

Target operating life (excl. burrs): 500'000 shots

Burrs:

• Burr materials: Ceramic or special steel
• Burr diameter: 54 mm

Dimension (w x h, ø): 112 x 180 mm, ø 115 mm

Weight: 3'500 g / 3'840 g

Recommended accessories:

• Electronic grind adjustment unit
• Capacitor

*All values measured with standard configuration under laboratory conditions. Subject to change without prior notice.
