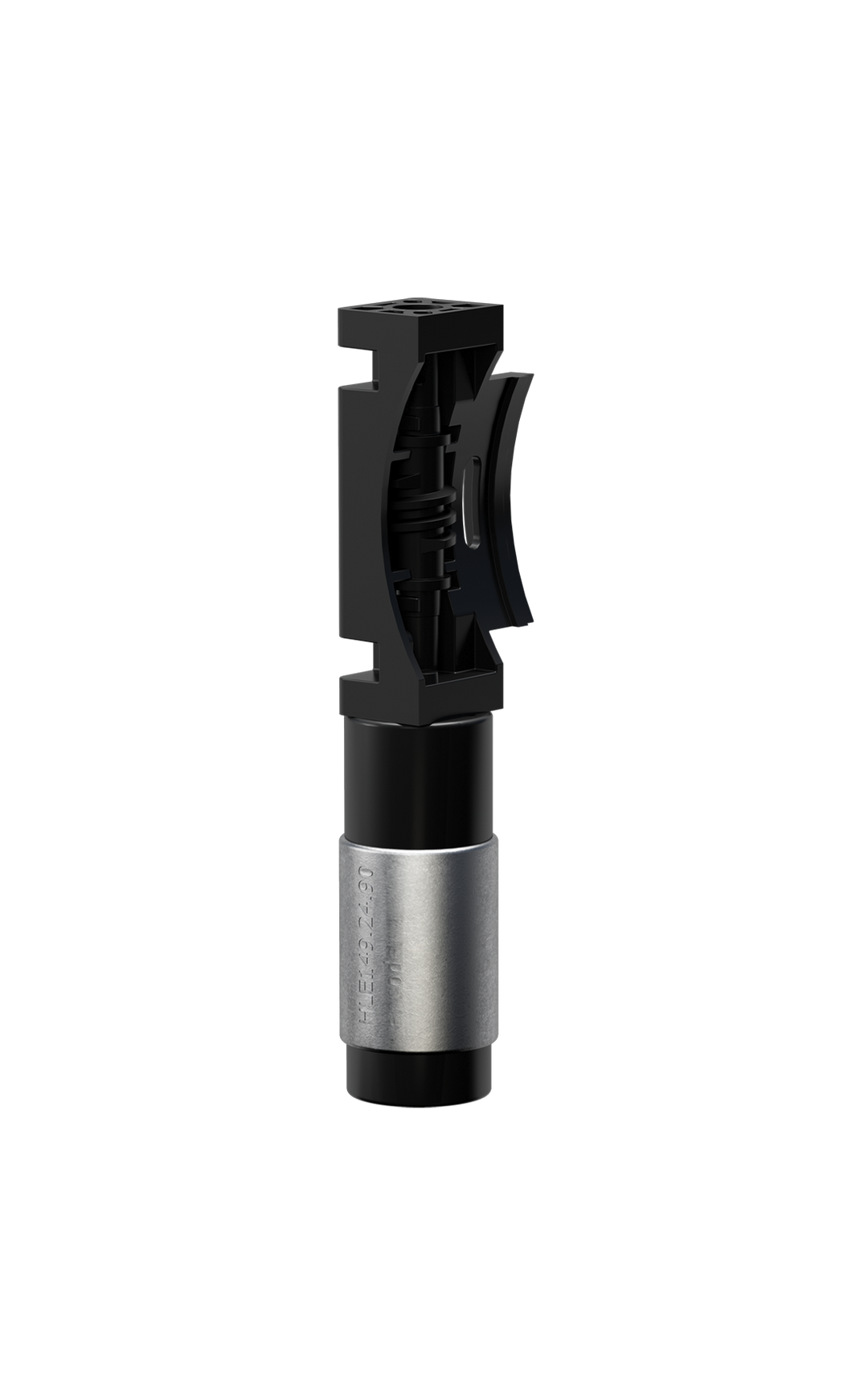

ELECTRONIC GRIND ADJUSTMENT UNIT
ELECTRONIC GRIND ADJUSTMENT UNIT
Accessories
Ensures consistent quality inside each cup.
- Stepless grind adjustment
- Fits the EMV 54 and EMV 64 built-in grinders
- Variable and flexible assembly positions
Voltage: 24 VDC
Amperage: 0.6 A
Motor specification: Gear motor with hall-effect encoder
RPM: 30 - 37 RPM
Temperature range: -20 °C / 80 °C
Ideal daily capacity: 100 cycles
Target operating life: 100'000 cycles
Dimension (l x w x h): 145 x 29 x 38 mm
Weight: 125 g
Options: Steel or POM worm shaft available
*All values measured with standard configuration under laboratory conditions. Subject to change without prior notice.
