Ditting Brewing Module Component Solution

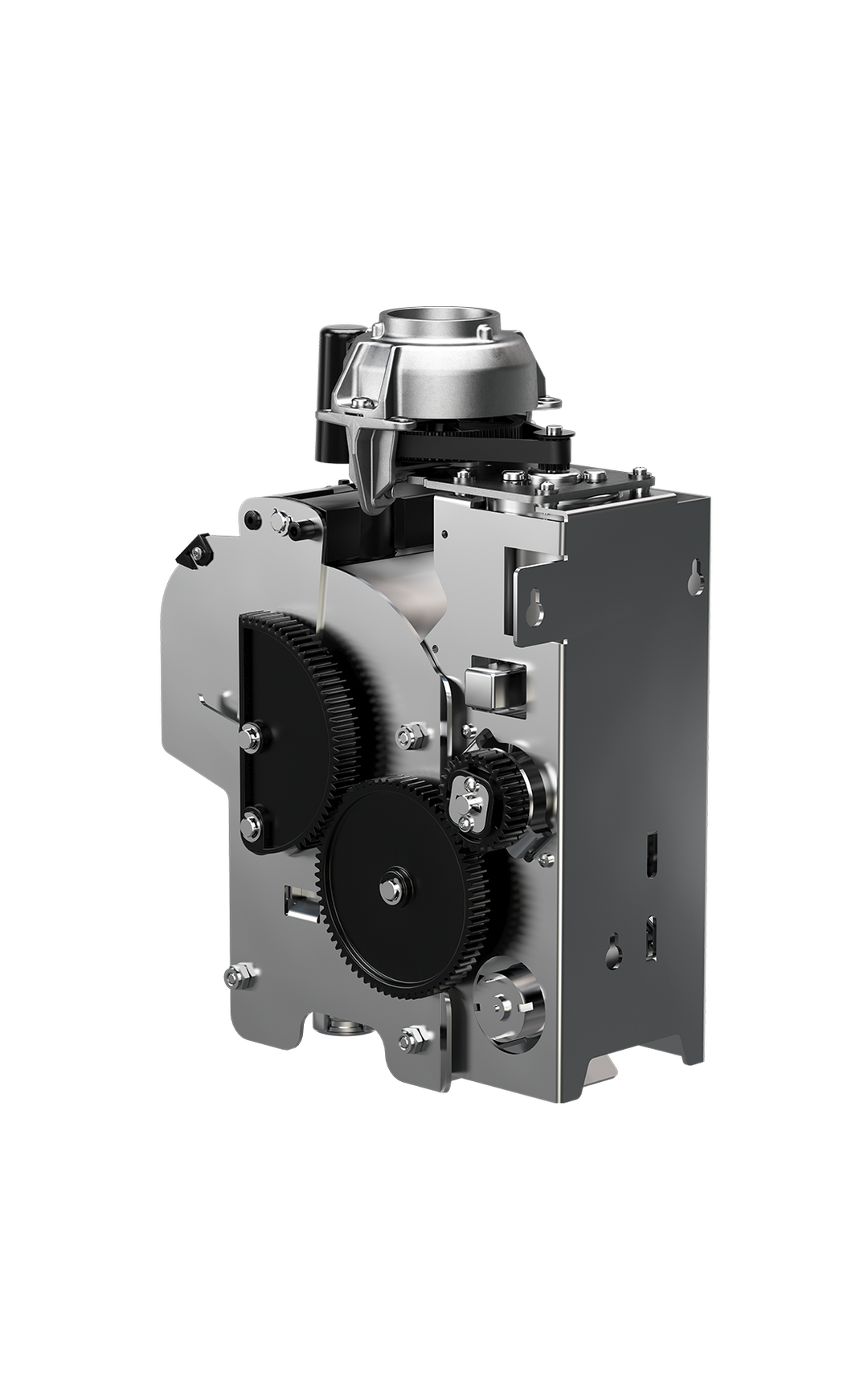

BREWING MODULE

BREWING MODULE

Professional

Brewer with built-in grinder.

  • Built-in brewer including EK 7 grinder
  • Special developed créma valve
  • Brewer separated - easy to detach

* Limited distribution right: This product may not be sold in all countries.

Voltage, amperage:

  • Grinder (EK 7): 230 VDC
  • Brewer Drive: 2 x 24 VDC

Pressure range: 10 - 15 bar

Capacity brewing chamber: 6 - 16 g; Ø 42 mm

Target lifetime (excl. burrs):

  • Brewer: 50‘000 cycles
  • Drive unit: 100‘000 cycles

Grinding (single shot): 2 seconds

Closing mechanism: 6 seconds

Opening mechanism: 10 seconds

Dimension (l x w x h):

  • Brewer: 174 x 129 x 243 mm
  • Drive*: 152 x 122 x 311 mm

Weight:

  • Brewer: 2'580 g
  • Drive*: 2'930 g

*Inclusive of grinder

All values measured with standard configuration under laboratory conditions. Subject to change without prior notice.
