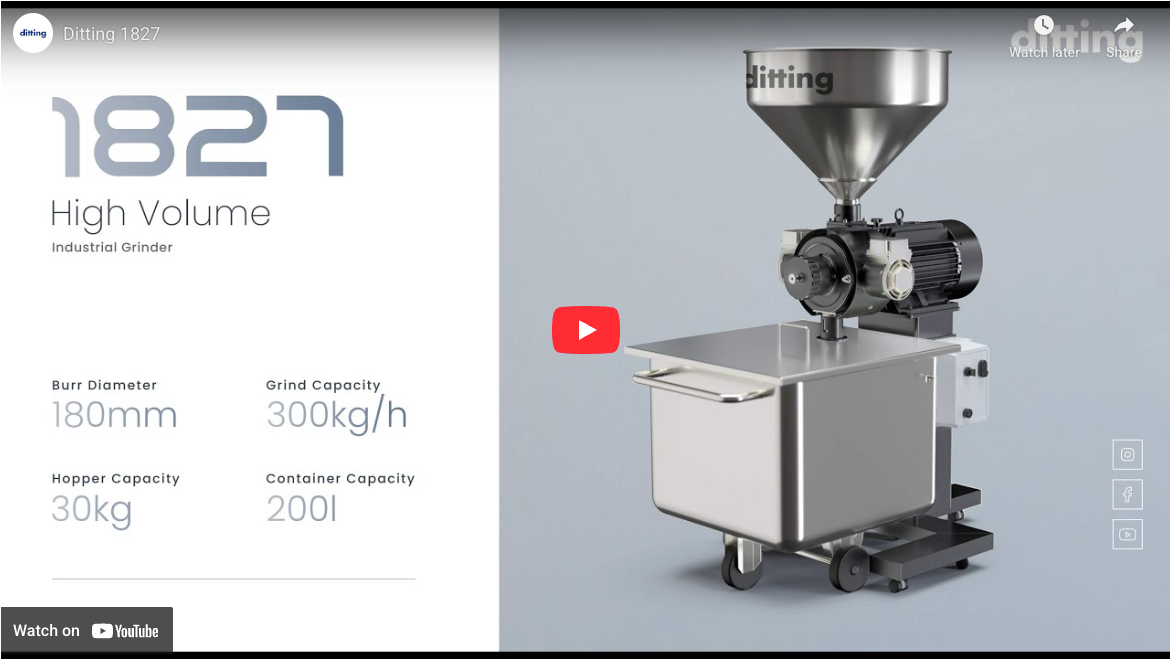

1827 High Volume Industrial Grinder

Industrial Grinder

The 1827 High Volume levels up the capacities of your premium pre-ground coffee production from 230 kg to 300 kg per hour and is suitable for continuous operation, such as in medium to large size coffee productions or roasteries.

Exceptionally Even Grind Quality: Ensures consistently outstanding results.
High-Precision Stepless Adjustment: Allows for excellent repeatability and ultimate control over grind size.
Premium, Wear-Resistant Burrs: Custom-selected to match your specific application and needs.
Powerful Three-Phase Motor: Features surface cooling and high starting torque, making it ideal for continuous operation.

We cooperate with sales and service partners around the globe. Find the dealer that is closest to you and get into contact.

Voltage // frequencies // phases:

380-415 V // 50/60 Hz // 3~
200-208 V // 60 Hz // 3~

Idle Speed:

1450 rpm (50 Hz)
1750 rpm (60 Hz)

Burr diameter: 180 mm

Burr materials:

Fully hardened special steel (S)

Burr grind life (approx.): 25-45 tons
Average grinding capacity*: Medium 300 kg/h // Espresso 280 kg/h

Special steel for Turkish fine (ST)

Burr grind life (approx.): 25-45 tons
Average grinding capacity*: Turkish 180 kg/h

Hard metal tungsten carbide (HM)

Burr grind life (approx.): 250-450 tons
Average grinding capacity*: Medium 280 kg/h // Espresso 260 kg/h

Nominal power: 5500 W

Dimensions (w x h x d): 79 x 160 x 123 cm

Net weight: 158kg (Incl. base)

Container dimensions (w x h x d): 69 x 70 x 79 cm

Container capacity: 200l

Bean hopper capacity: 30kg

Standard color:

Body: Structured black
Hopper/Container: Stainless steel

Certifications: CB/CE incl. EMC, ETL, KC and PSE

EQUIPMENT FEATURES:

Two additional fans to cool the motor
Motor and grinder casing ventilation
Overload protection
Service-free, constantly greased bearings
Easy to access grinding chamber
Includes ground material container (capacity 200 l) and bean hopper (30kg)

*Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
