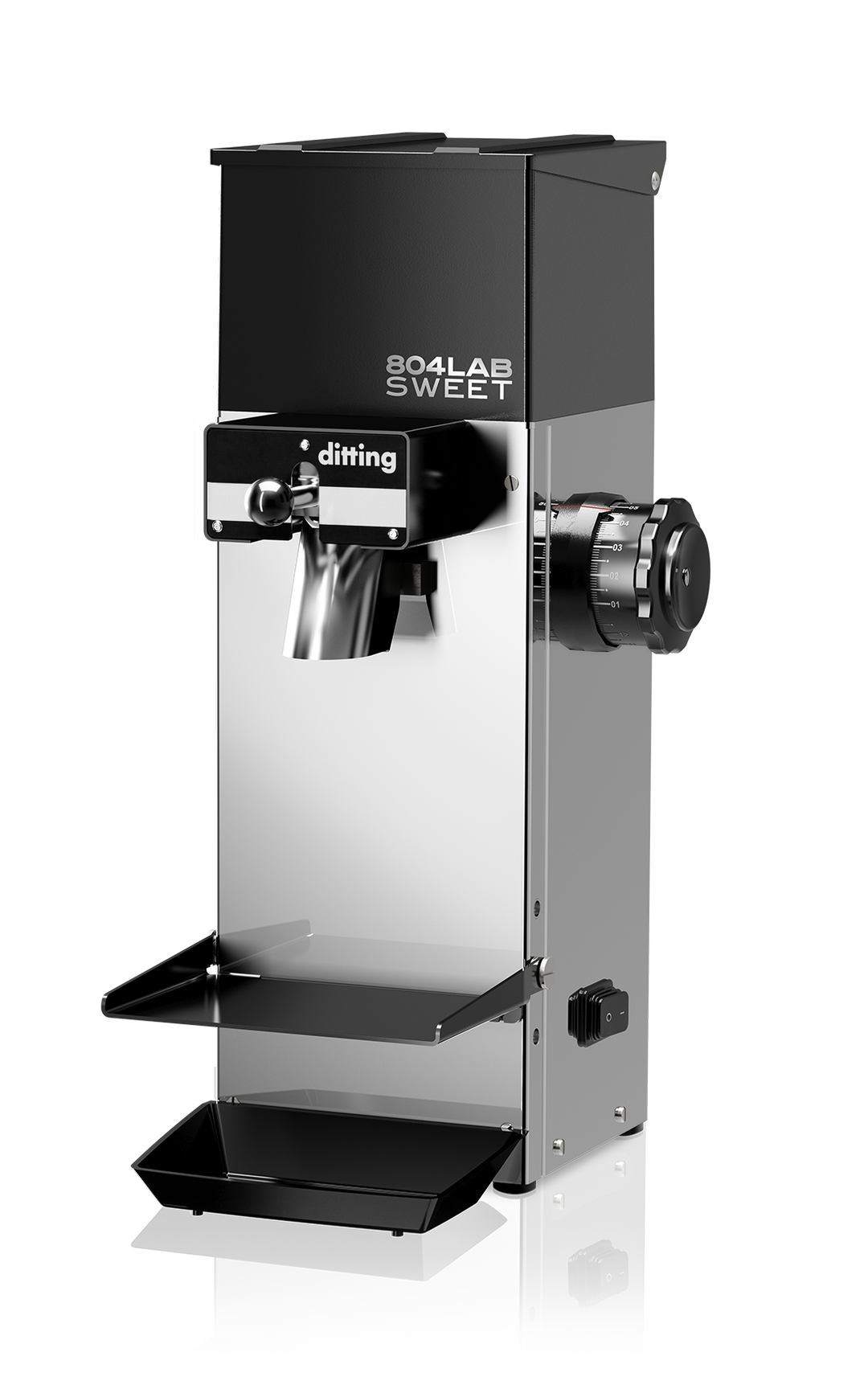

Ditting 804 Lab Sweet Shop Grinder

804 LAB SWEET

804 LAB SWEET

HORECA Grinder

The 804 LAB SWEET grinder model is no longer available. Contact your local Distributor for service or spare parts.

The 804 LAB SWEET combines the approved grinding technology of the 804 series with functionalities especially designed for laboratory applications. The grinder facilitates single portion grinding with almost no residues. This is how the 804 LAB SWEET prevents the cross contamination off different coffees and achieves the highest precision.

  • Consistent extraction and more sweetness inside the cup thanks to especially engineered burrs
  • Wear-resistant premium cast steel precision burrs
  • Adjustable mounting position of the tray in different heights
  • Stepless grind adjustment within an extended range
  • Aroma saving consistent grinding
  • Minimal retention of coffee residues left in the spout thanks to the manual knocker
  • Very easy to maintain and to clean

Voltage // frequencies // phases:

  • 100 V // 50 Hz // 1~
  • 100 V // 60 Hz // 1~
  • 120 V // 60 Hz // 1~
  • 220 - 240 V // 50 Hz // 1~
  • 220 - 240 V // 60 Hz // 1~

Revolutions per minute: 1300 rpm (50 Hz); 1650 rpm (60 Hz)

Burr diameter: 80 mm

Burr material: Premium cast steel

Average grinding capacity*: 510 g/m

Bean hopper capacity: approx. 500g

Nominal power: 500 W

Dimensions (w x h x d): 200 x 480 x 260 mm

Dimensions of packing (w x h x d): 265 x 570 x 360 mm

Net weight: 21.8 kg

Shipping weight: 22.5 kg

Standard color: Stainless steel & black

Listings: CE conform, CB, UL, NSF, Additional on request

Standards: IEC/EN 60335-1; IEC/EN 60335-2-64; ANSI / UL 763; ANSI / NSF 8; CSA-C22.2 No. 195; Additional on request

SPECIAL EQUIPMENT:

  • Grinding dial with brewing method indication
  • Burr set, steel

* Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
